Welcome to the world of retaining wall installation! Whether you’re looking to prevent erosion, add visual appeal to your outdoor space, or create more usable land, installing a retaining wall can be a practical and aesthetically pleasing solution. In this article, we will discuss the benefits of retaining walls, the different materials and styles available, and the steps involved in the installation process. By the end, you’ll be equipped with the knowledge to transform your landscape with a beautiful and functional retaining wall. Have you ever considered installing a retaining wall in your outdoor space but weren’t sure where to start or what materials to use? In this comprehensive guide, we will walk you through the process of installing a retaining wall step by step. By the end of this article, you will have all the information you need to successfully complete this project and enhance the functionality and aesthetic appeal of your outdoor area.
Understanding Retaining Walls
Retaining walls are structures designed to hold back soil and prevent erosion on hillsides or sloped areas. They are commonly used in landscaping to create a level surface and provide support for landscaping features such as gardens, patios, and seating areas. Retaining walls can be made from a variety of materials, including concrete blocks, stone, bricks, and timber.
Retaining walls not only serve a functional purpose but also add visual interest to your outdoor space. They can be designed in a variety of styles and finishes to complement the overall design of your landscape.
Types of Retaining Walls
There are several types of retaining walls to choose from, each with its own unique characteristics and benefits. The most common types of retaining walls include:
Gravity Walls
Gravity walls rely on their own weight to resist the pressure of the soil behind them. They are typically made from heavy materials such as concrete and stone and do not require additional reinforcements, making them a cost-effective option for smaller walls.
Cantilever Walls
Cantilever walls are designed with a concrete slab or base that extends horizontally into the soil behind the wall. This slab acts as a lever arm to counteract the pressure from the soil, providing additional stability.
Anchored Walls
Anchored walls are reinforced with cables or strips that are anchored into the soil behind the wall. This type of wall is ideal for tall or heavy walls that require additional support.
Sheet Pile Walls
Sheet pile walls are constructed using interlocking steel, vinyl, or wood sections driven into the ground to create a barrier against soil erosion. This type of wall is commonly used in waterfront areas to prevent water damage.
Gabion Walls
Gabion walls are made from wire cages filled with rocks or stones. They are a flexible and environmentally friendly option that allows for water drainage and vegetation growth.
Planning Your Retaining Wall
Before you begin the installation process, it is important to carefully plan your retaining wall to ensure that it meets your specific needs and complements the overall design of your landscape. Here are some key considerations to keep in mind when planning your retaining wall:
Determine the Purpose of the Wall
Consider why you are installing a retaining wall and what you hope to achieve with it. Are you looking to create a level seating area, prevent erosion, or add visual interest to your landscape? Understanding the purpose of the wall will help guide your design decisions and material choices.
Assess the Site Conditions
Take a close look at the site where you plan to install the retaining wall. Consider factors such as soil type, drainage patterns, and the slope of the terrain. These site conditions will impact the design, size, and construction requirements of your retaining wall.
Set a Budget
Establishing a budget for your retaining wall project will help you determine the materials and design options that are within your price range. Be sure to account for additional costs such as excavation, drainage systems, and permits.
Obtain Necessary Permits
Depending on the height and location of your retaining wall, you may need to obtain a permit from your local building department before you can begin construction. Check with your city or county to determine the requirements for retaining wall permits in your area.
Choosing Materials for Your Retaining Wall
The material you choose for your retaining wall will have a significant impact on its durability, appearance, and maintenance requirements. Here are some popular materials used for retaining walls, along with their characteristics:
| Material | Characteristics |
|---|---|
| Concrete | Durable, versatile, and available in a variety of styles |
| Stone | Natural appearance, can be dry-stacked or mortared |
| Brick | Classic look, versatile, and easy to install |
| Timber | Rustic charm, economical, and environmentally friendly |
| Gabion | Flexible, eco-friendly, allows for drainage |
Each material has its own advantages and limitations, so it’s important to consider factors such as cost, maintenance, and aesthetic appeal when selecting the best material for your retaining wall.
Designing Your Retaining Wall
The design of your retaining wall will depend on the specific requirements of your site and the desired aesthetic of your landscape. Here are some key design considerations to keep in mind when planning your retaining wall:
Wall Height
The height of your retaining wall will impact the materials, reinforcements, and construction techniques required for the project. Be sure to consult with a structural engineer if you are planning to build a tall retaining wall to ensure that it meets safety standards.

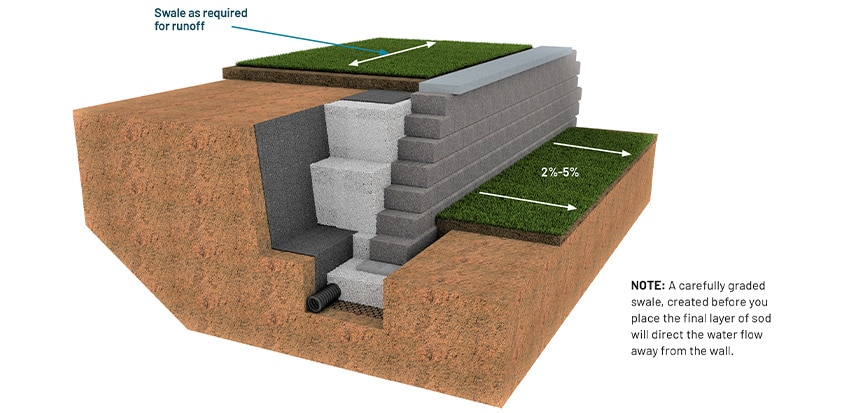

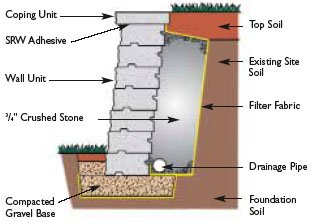

Drainage
Proper drainage is essential for the longevity and stability of your retaining wall. Consider incorporating drainage features such as weep holes, gravel backfill, and perforated pipes to prevent water buildup behind the wall.
Slope
The slope of the terrain where you plan to install the retaining wall will influence its design and construction. Steeper slopes may require additional reinforcements and engineering to ensure the wall can withstand the pressure of the soil.
Curves and Corners
Adding curves or corners to your retaining wall can enhance its visual appeal and complement the natural contours of your landscape. Consider incorporating rounded edges or tiered sections for a more dynamic and organic look.

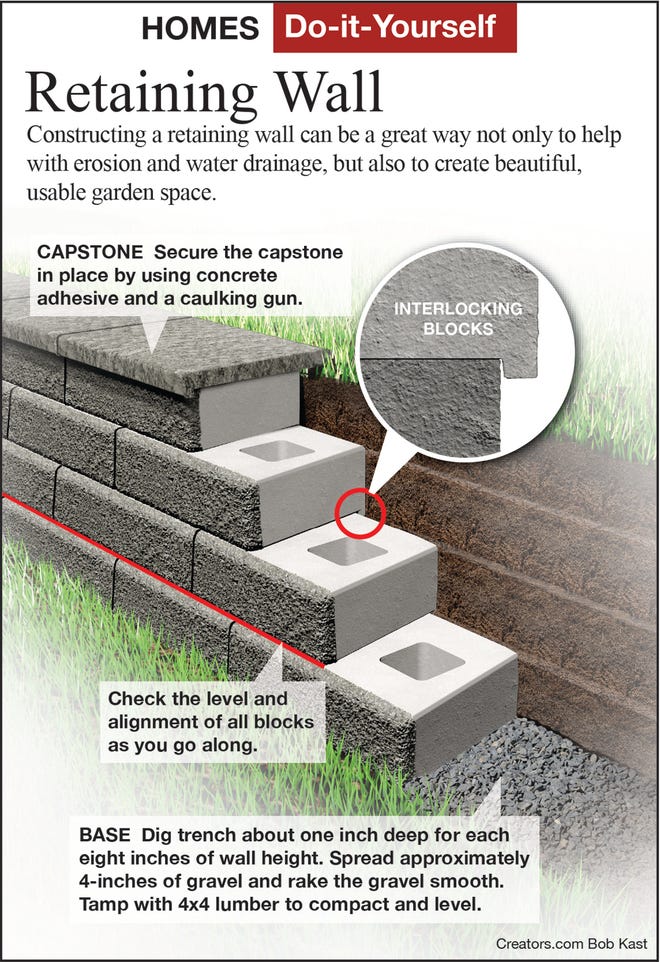

Constructing Your Retaining Wall
Once you have completed the planning and design phases of your retaining wall project, it’s time to start the construction process. Follow these step-by-step instructions to build a sturdy and visually appealing retaining wall:
Excavation
Begin by clearing and excavating the area where you plan to install the retaining wall. Create a trench that is at least twice the width of the wall and deep enough to accommodate a stable foundation.
Foundation
Create a solid foundation for your retaining wall by compacting the soil in the trench and adding a layer of gravel for drainage. For taller walls, consider pouring a concrete footing to provide additional support.
Installation
Start by placing the first row of retaining wall blocks or stones along the trench, making sure they are level and tightly packed together. Continue adding rows of blocks, alternating the joints for stability, and use a level to check for evenness.

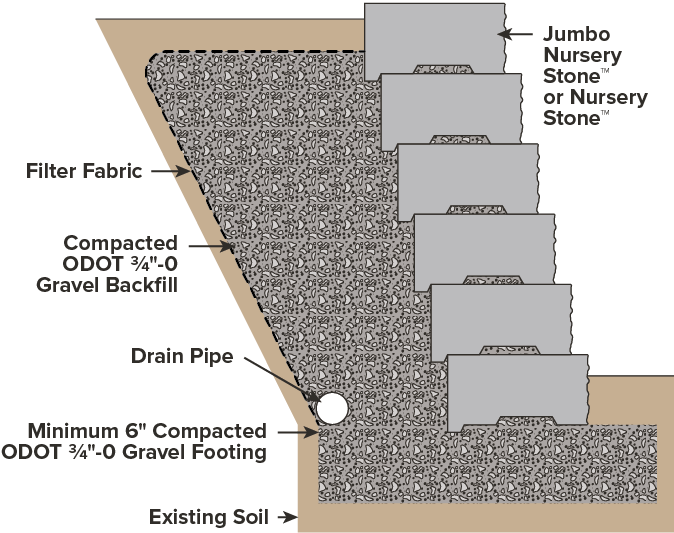

Backfilling
Once the retaining wall is in place, backfill the area behind the wall with gravel or soil, compacting it to prevent settling. Add drainage features such as weep holes or gravel backfill as needed to ensure proper water runoff.
Finishing Touches
Add finishing touches to your retaining wall, such as capstones, coping stones, or decorative accents, to enhance its aesthetic appeal and provide a polished look. Consider planting vegetation or adding lighting to further enhance the beauty of your wall.
Maintaining Your Retaining Wall
To ensure the longevity and effectiveness of your retaining wall, it’s important to perform regular maintenance and inspections. Here are some tips for maintaining your retaining wall:
Inspect for Damage
Periodically inspect your retaining wall for signs of damage, such as cracks, bulging, or erosion. Address any issues promptly to prevent further damage and ensure the structural integrity of the wall.
Clean and Seal
Clean your retaining wall regularly to remove dirt, debris, and plant growth that can weaken the structure over time. Consider sealing the surface of the wall to protect it from moisture and UV damage.
Prevent Water Damage
Ensure that your retaining wall has proper drainage to prevent water buildup behind the wall, which can lead to erosion and structural damage. Consider installing a drainage system or adding weep holes to allow water to escape.
Repair as Needed
If you notice any damage or deterioration to your retaining wall, such as loose stones, cracks, or leaning sections, take immediate action to repair the damage. Consult with a professional if necessary to ensure that the repairs are done correctly.
Conclusion
Congratulations, you have now completed the installation of your retaining wall! By following the steps outlined in this guide and incorporating your own creativity and design preferences, you have successfully transformed your outdoor space with a functional and visually appealing landscape feature. Remember to maintain your retaining wall regularly to ensure its longevity and enjoy the benefits of a well-constructed and well-designed outdoor area. Thank you for choosing to embark on this exciting project, and we hope you enjoy the beauty and functionality that your new retaining wall provides.
